Floating Flanged Expansion Joints

Floating Flanged Expansion Joints

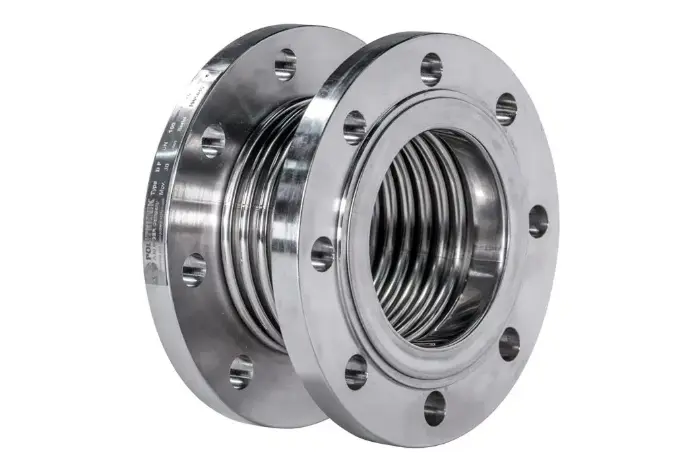

Floating flanged expansion joints are equipped with carbon steel or stainless steel flanges (EN, ASME or as requested). It absorbs mainly axial movements with possibility of some lateral movements.

Even though they can absorb movements in any direction, this type is mainly used for axial movements. If lateral movement is requested, a universal type may be more suitable. These type of expansion joints can be supplied with limit rod, liners, covers, rods, hinges or gimbals.

Available for exhaust gas, liquid medium and steam. Bellows are calculated following latest EJMA standards.

Also, floating flange type expansion joints may have a double bellows which are designed for absorbing the higher lateral movements.
