KLINGER® Quantum
KLINGER® Quantum
Unique gasket material with highest flexibility at high temperatures

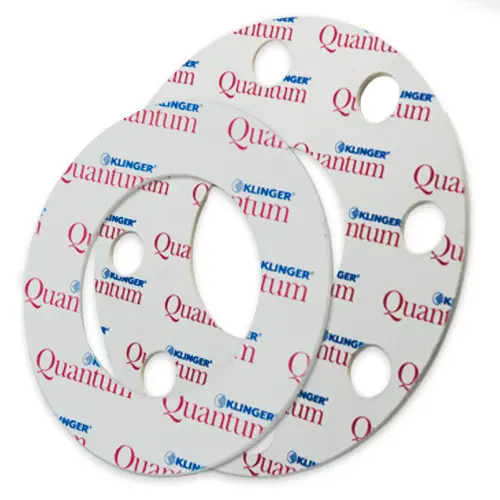

KLINGER Quantum is a unique gasket material with highest flexibility at high temperatures.
Basis
High-quality fiber and filler compound bonded in a high temperature resistant HNBR-Matrix.
Areas of application
This material is suitable for the use in oils, water, steam, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants.
Key features
- Unique HNBR matrix
- Special curing technology
- Resistant to creep and cold flow
- Dimensionally stable
Benefits
- Superior long-term flexibility at higher temperatures
- Outstanding temperature resistance
- FDA conformity
Certificates & approvals
- xygen-tested
- DIN-DVGW
- TA-Luft (Clean air)
- Fire-Safe acc. to DIN EN ISO 10497
- FDA conformity
Typical technical data for thickness 2.0 mm
| Recovery | ASTM F36J | % | 50 |
| Stress relaxation DIN52913 | 50 MPa,16h/175℃ | MPa | 32 |
50 MPa,16h/300℃ |
MPa | 30 | |
| Stress relaxation BS 7531 | 40 MPa,16 h/300℃ | MPa | 29 |
| KLINGER cold/hot compression 50 MPa | thickness decrease at 23℃ | % | 10 |
thickness decrease at 300℃/400℃ |
% | 14/20 | |
| Tightness | DIN 28090-2 | mg/(sxm) | 0.02 |
| Specific leakrate | VDI 2440 | mbarxI/(sxm) | 4.40E-08 |
| Thickness increase after fluid immersion ASTMF146 | oil IRM 903:5h/150℃ | % | 3 |
| fuel B:5h/23℃ | % | 5 | |
| Density | g/cm³ | 1.7 | |
| Average surface resistance | pO | Ω | 7.7x10E12 |
| Average specific volume resistance | pD | Ω cm | 4.7x10E12 |
| Average dielectric strength | Ed | kV/mm | 18.5 |
| Average power factor | 50 Hz | tanδ | 0.064 |
| Average dielectric coefficient | 50 Hz | εr | 6.8 |
| Thermal conductivity | λ | W/mK | 0.44 |
| Classification acc.to BS 7531:2006 | Grade AX |

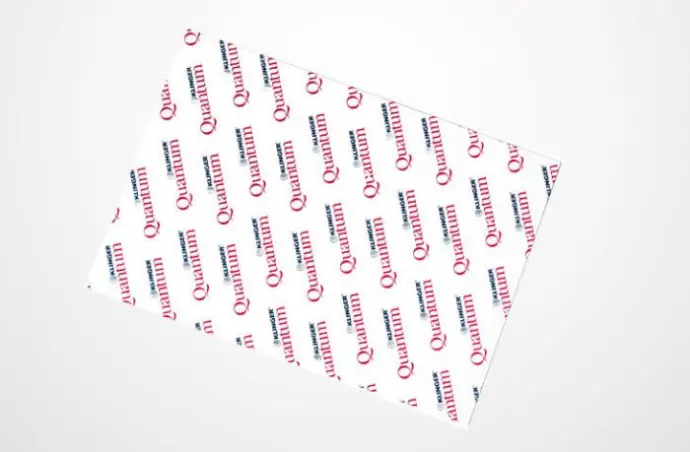

Dimensions of the standard sheets
| Sizes | 2000 x 1500 mm |
| Thicknesses | 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm |
| Tolerances | Thickness acc. to DIN 28091-1 Length ±50 mm, Width ±50 mm |
Other thicknesses, sizes and tolerances on request.
Function and durability
The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
