KLINGER Graphite Laminated Sheeting
KLINGER Graphite Laminated Sheeting
Klinger graphite based gasket materials are suitable for use at temperature from -200°C up to 460°C and offers resistance against a broad range of chemicals.

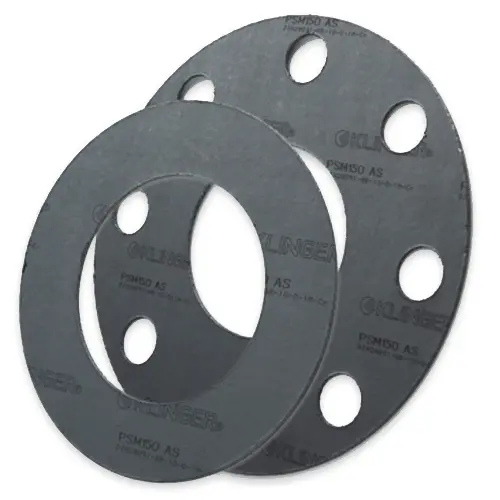

KLINGER GRAPHITE PSM/AS
PSM/AS is a graphite material laminated with a 0.1mm thickness tanged stainless steel 316 insert. The insert aids material handling properties and also increases the blow-out resistance. The insert is mechanically bonded to the graphite and does not rely on adhesive. PSM/AS is finished with an anti-stick finish developed to aid removal from the flange even after use at elevated temperatures.
PSM is fire-safe to API 6FB
162050_Datenblaetter_A4_graphitelaminatePSM_E.pdf
KLINGER GRAPHITE SLS/AS
SLS/AS is a laminated graphite material with a 0.05mm thickness stainless steel 316 foil insert to aid handling. The insert is bonded to the graphite by means of an adhesive and is easier to cut than PSM/AS. SLS/AS is also finished with an anti-stick coating.
