KLINGER C-4324

KLINGERSIL® C-4324

Universal high-pressure gasket for a wide range of applications

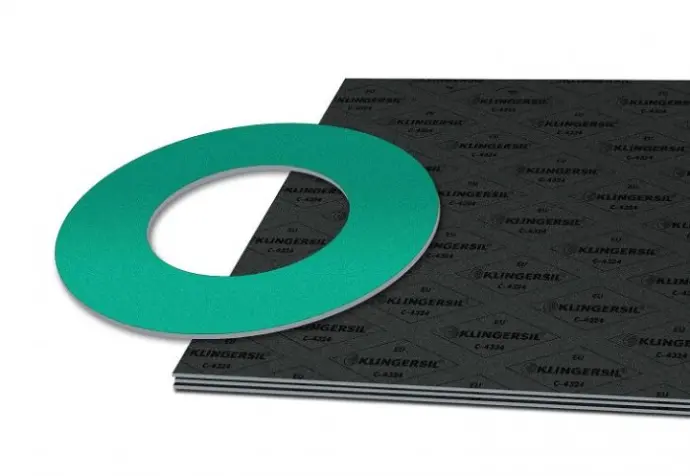

KLINGERSIL® C-4324 is a universal high-pressure gasket, suitable for a wide range of applications.

Basis

Combination of synthetic high performance fibers, bonded with NBR.

Areas of application

This gasket material is suitable for the use in liquids and steam at lower pressure and temperature. Resistant to water, oils, hydrocarbons and many other chemicals.

Key features

General purpose gasket material
Dimensionally stable
Consistent material composition

Benefits

Excellent Price/Performance ratio
Suitable for many different media

Certificates & approvals

DIN-DVGW
WRAS approval
Elastomer-Guideline
DNV GL
SVGW approval

>> to the overview

Sales Partner

>> check out our locations

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 J		%	10
Recovery ASTM F 36 J		%	55
Stress relaxation DIN 52913	50 MPa,16 h / 175 °C 50 MPa, 16 h / 300 °C	MPa MPa	31 20
Stress relaxation BS 7531	40 MPa, 16 h / 300 °C	MPa	23
KLINGER cold/hot compression 50 MPa	thickness decrease at 23 °C thickness decrease at 300 °C	% %	10 25
Tightness	DIN 28090-2	mg/s x m	0.03
Thickness increase after fluid immersion ASTM F 146	Oil IRM 903: 5 h / 150 °C Fuel B: 5 h / 23 °C	% %	5 10
Density		g/cm3	1.85
Average surface resistance	ρO	Ω	1.04x10E13
Average specific volume resistance	ρD	Ω cm	4.3x10E11
Average dielectric strength	ED	kV/mm	12
Average power factor	50 Hz	tan δ	0.109
Average dielectric coefficient	50 Hz	εr	9
Thermal conductivity	λ	W/mK	0.50
Classification acc. to BS 7531:2006	Grade Y

ASME-Code sealing factors

for gasket thickness 1.0 mm

tightness class 0.1 mg / s x m

MPa

y 15

m 2.2

for gasket thickness 2.0 mm

tightness class 0.1 mg/s x m

MPa

y 15

m 2.6

for gasket thickness 3.0 mm

tightness class 0.1 mg/s x m

MPa

y 15

m 4.1

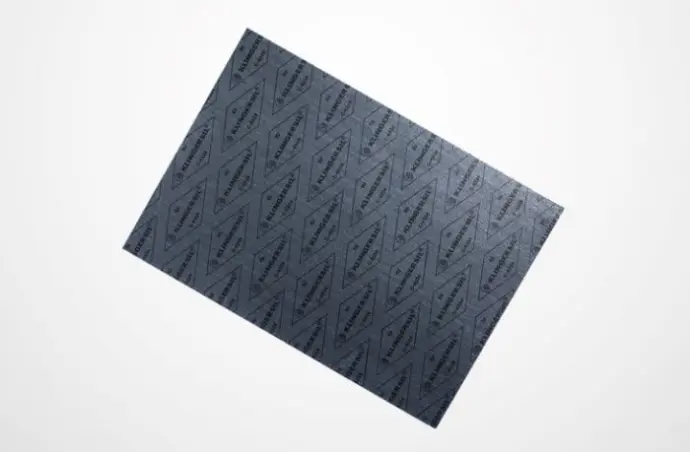

Dimensions of the standard sheets

Sizes	1000 x 1500 mm, 2000 x 1500 mm
Thicknesses	0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm
Tolerances	Thickness acc. to DIN 28091-1 Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on request.

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
