KLINGER C-4430

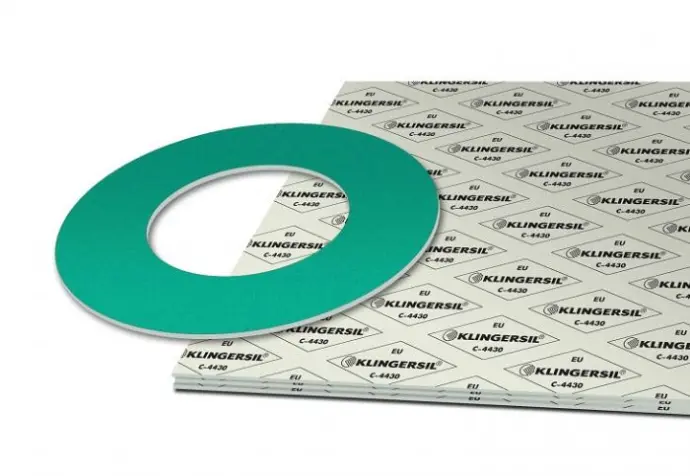

KLINGERSIL® C-4430

Outstanding stress relaxation and resistance to hot water and steam

KLINGERSIL® C-4430 offers outstanding stress retention and resistance to hot water and steam.

Basis

Optimum combination of synthetic fibers, bonded with NBR.

Areas of application

Resistant to water and steam at higher temperatures as well as to oils, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants.

Key features

Optimum combination of synthetic and glass fibres
Outstanding stress relaxation
Dimensionally stable

Benefits

Suitable for high temperature steam and water
Better resistance against hydrocarbons
Suitable for many different media

Certificates & approvals

BAM-tested
DIN-DVGW
DIN-DVGW W 270
DVGW VP 401
Elastomer-Guideline
WRAS approval
DNV GL
TA-Luft (Clean air)
Fire-Safe acc. to DIN EN ISO 10497
Fire-Safe acc. to ISO 19921

>> to the overview

Sales Partner

>> check out our locations

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 J		%	9
Recovery ASTM F 36 J		%	55
Stress Relaxation DIN 52913	50 MPa,16 h / 175 °C 50 MPa,16 h / 300 °C	MPa MPa	39 35
Stress relaxation BS 7531	40 MPa, 16 h / 300 °C	MPa	31
KLINGER cold/hot compression 50 MPa	thickness decrease at 23 °C thickness decrease at 300 °C	% %	8 11
Tightness	DIN 28090-2	mg/s x m	0.05
Specific leakrate λ	VDI 2440	mbar x l/s x m	2.13E-05
Thickness increase after fluid immersion ASTM F 146	Oil IRM 903: 5 h / 150 °C Fuel B: 5 h / 23 °C	% %	3 5
Density		g/cm3	1.8
Average surface resistance	ρO	Ω	4.1x10E13
Average specific volume resistance	ρD	Ω cm	4.5x10E12
Average dielectric strength	Ed	kV/mm	21.3
Average power factor	50 Hz	tanδ	0.03
Average dielectric coefficient	50 Hz	εr	6.7
Thermal conductivity	λ	W/mK	0.38
Classification acc. to BS 7531:2006	Grade AX

ASME-Code sealing factors

for gasket thickness 1.0 mm

tightness class 0.1 mg / s x m

MPa

y 20

m 1.1

for gasket thickness 2.0 mm

tightness class 0.1 mg / s x m

MPa

y 20

m 1.6

for gasket thickness 3.0 mm

tightness class 0.1 mg / s x m

MPa

y 20

m 2.2

Dimensions of the standard sheets

Sizes	1000 x 1500 mm, 2000 x 1500 mm
Thicknesses	0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances	Thickness acc. to DIN 28091-1 Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on request.

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
