Trap Valves
Trap Valve
Steam traps are a type of automatic valve that filters out condensate (i.e. condensed steam) and non-condensable gases such as air without letting steam escape.
In industry, steam is used regularly for heating or as a driving force for mechanical power. Steam traps are used in such applications to ensure that steam is not wasted.
PRODUCTION ON THIS SPACE

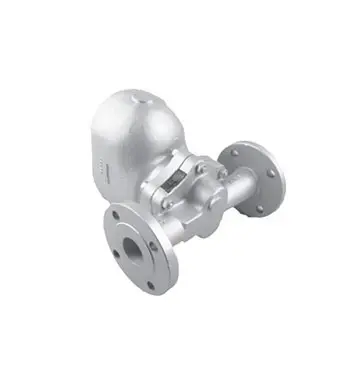

KB220 Floating Ball Trap Valve

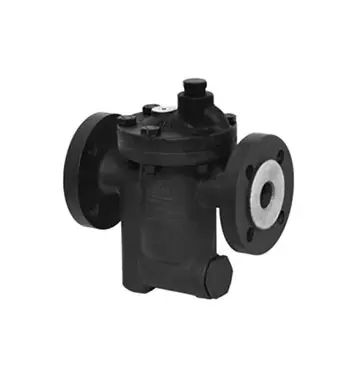

KB880 Invert Bucket Trap Valve
DOWNLOAD DATA SHEETS
CONTACT SALES
KLINGER Shanghai
500 Mingnan Road, Songjiang District, Shanghai, China
Valve & Level Gauge Department
Product Details
- DN 15 - 80
- PN 16，ANSI150，JIS10K
Features
- Exhaust condensate at saturation temperature，to improve thermal efficiency of equipment.
- Exhaust non-condensing gas automatically in the pipeline and equipment，to ensure start quickly and improve production efficiency.
- Under allowed pressure range, adjustment automatically, back pressure resistance by 80%.
- Internal components are all made of stainless steel, strong corrosion resistance.
- Simple structure and easy maintenance.
- Horizontal or vertical installation,according to customer requirements.
- Drain lower than water level, to avoid steam leakage.
